Light Engine-1

l / 2 / 3

H-SERIES LIGHT ENGINE

Features
  • One piece sheathing (click-in) for easy parts replacement.
  • Versatile Installation structure for wall mounting.
  • Sufficient Ventilation for cooling.
  • Easy-to-use wired remote control.
  • Precision Optic Syste

CW-2
Diameter: 72mm
Color: Red, Yellow, Blue, Green

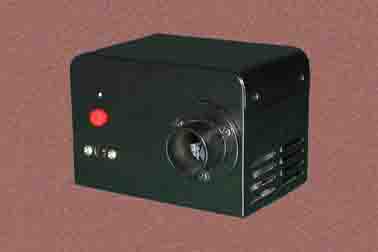

H-20/35
I
NPUT POWER: AC 120V/60Hz 230V/50Hz
LAMP: 12V 20W/35W HALOGEN OSRAM
MOTOR: AC 12V 2.5-3RPM
COLOR: RED,BLUE,GREEN,ORANGE AND WHITE
FUNCTION:
  • CONTINUE CHANGE COLOR
  • SELECT COLOR
    SIZE: L100XW95XH80mm
    WEIGHT: 0.5kg
    • RH-20/35
    INPUT POWER: AC 120V/60Hz 230V/50Hz
    LAMP: 12V 20W/35W HALOGEN OSRAM
    MOTOR: AC 12V 2.5-3RPM
    COLOR: RED,BLUE,GREEN,ORANGE AND WHITE
    FUNCTION:
  • CONTINUE CHANGE COLOR
  • SELECT COLOR
    SIZE: L180XW120XH95mm
    WEIGHT: 1.7kg

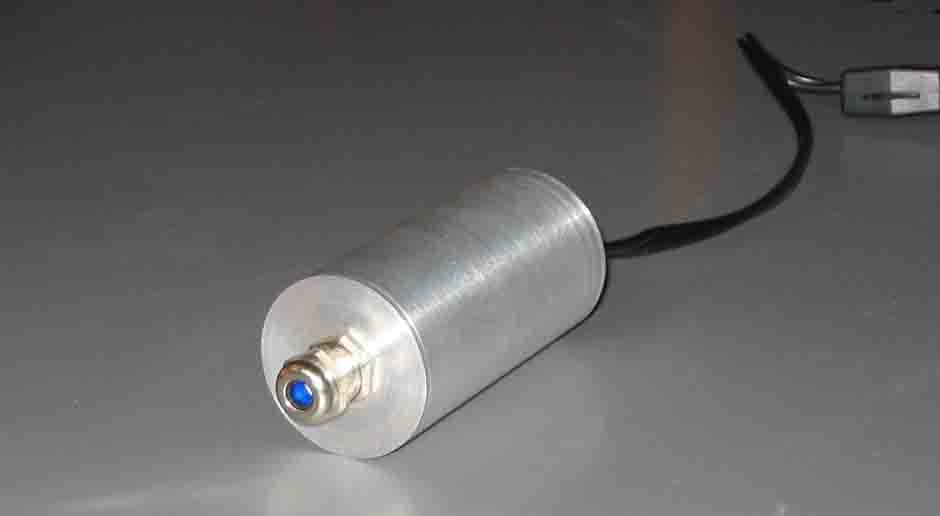

    • SL-1R, SL-1G, SL-1Y, SL-1B, SL-1W

    INPUT POWER: AC 120V/60Hz 230V/50Hz
    LAMP: 3V 1W Super Power LED
    COLOR: RED,BLUE,GREEN,ORANGE AND WHITE
    FUNCTION:
  • SINGLE COLOR OR CONTINUE CHANGE COLOR

  • SELECT COLOR
    SIZE: ¦Õ5XL12cm

    WEIGHT: 0.3kg

    • OL3C

    INPUT POWER: AC 120V/60Hz  OR 230V/50Hz
    LAMP: 3V 3 colors  High  Power LED
    COLOR: RED,BLUE,GREEN,ORANGE OR  WHITE
    FUNCTION:
  • SINGLE COLOR OR CONTINUE CHANGE COLOR
  • SELECT COLOR
    SIZE: L120 X W56 X H41mm

    WEIGHT: 0.2kg

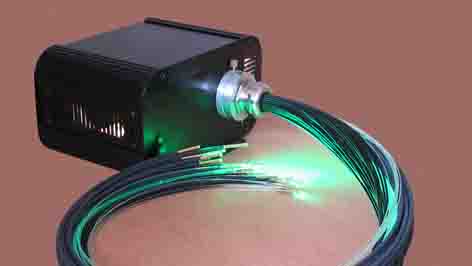

    • H-35, H-50, H-75, H-100

    H-35 DMX, H-50 DMX, H-75 DMX, H-100 DMX


    INPUT POWER: AC 120V/60Hz  OR 230V/50Hz
    LAMP: 12V/35W,12V/50W,12V/75W.12V/100W HALOGEN
    MOTOR: AC MOTOR 3-4 RPM
    FUSE: 125V/1A 250V/0.5A
    COLOR WHEEL: CW-2
    SIZE: L240XW158XH134mm
    WEIGHT: 3.8kg

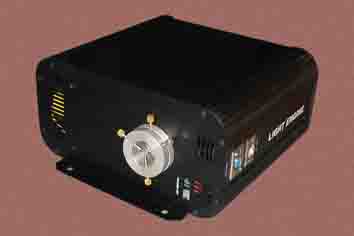

    R-70, R-70 DMX
    INPUT POWER: AC 120V/60Hz 230V/50Hz
    LAMP: /70W PHILIPS  10,000 HOURS AVG LIFE
    MOTOR: AC MOTOR 2.5 RPM
    FUSE: 125V/1A 250V/2A
    COLOR WHEEL: CW-2
    SIZE: L270XW250XH150mm
    WEIGHT: 6.5kg

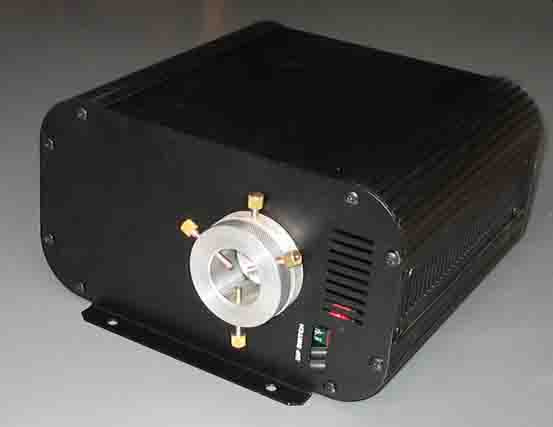

    R-100B, R-100B DMX
    NP    UT POWER: AC 120V/60Hz 230V/50Hz
    LAMP: /100W USHIO
    MOTOR: AC MOTOR 2.5 RPM
    FUSE: 125V/1A 250V/2A
    COLOR WHEEL: CW-2
    SIZE: L240XW250XH134mm
    WEIGHT: 4.5kg
    R-100A , R-100A DMX
    INPUT POWER: AC 120V/60Hz 230V/50Hz
    LAMP: /100W USHIO
    MOTOR: AC MOTOR 2.5 RPM
    FUSE: 125V/1A 250V/2A
    COLOR WHEEL: CW-2
    SIZE: L270XW250XH150mm
    WEIGHT: 4.5kg

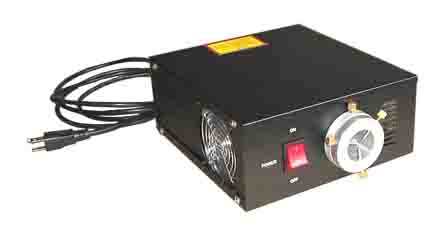

    R-100BS
    INPUT POWER: AC 120V/60Hz 230V/50Hz
    LAMP: /100W USHIO
    FUSE: 125V/1A 250V/2A
    COLOR WHEEL: SINGLE COLOR SELECTED
    SIZE: L220XW210XH95mm
    WEIGHT: 4kg

    ¡¡

    ¡¡

    		 1/ 2 / 3
