olid Core Durafiber


Product Features
  • Smooth Surface: The smooth and uniform illumination of Durafiber decorative  lighting tool.
  • Aesthetic: The quality of the light from Duraiber is soft and the color is 'pure', Durafiber is a perfect decorative lighting tool.
  • Flexible: Durafiber is flexible, so it is a great design tool for indoor/outdoor lining.
  • Bright: Your Duralight (When use with Neo-Neon Light Engines) is brighter than most other Fiber Optics.
  • Safe: Since Durafiber conduct light with out conducting heat and electricity. So the light emitted from Fiber Optic is a' cold' light, and the Fiber Optic is also safe to touch.
  • UV/IR proof: Free of Ultra-violet and inferred light is essential for lighting the precious objects such as specimen, medical, museum, etc.
  • essential for lighting the precious objects such as specimen, medical, museum, etc.
  • Algaecide and fungicide treated jacket fit for Garden decors.
  • Maintenance Free: Other thanuse keeping the dirt out with clean water, your Durafiber is virtually free of care.
  • Easy-use/install/: With various accessories, and Light Engine, Durafiber is basically a 'plug-n-play' unit.
  • Environmental Friendly: since Durafiber does not emit any harmful chemicals, it is completely safe to the environment.
  • End light or Sidelight Options.

    Application
    Durafiber is suitable for decorative, architechural outlining,  outdoor, aquatic pool/
    spa, indoor, Signage, biological, chemical, medical use.




Technical Parameter
Active Diameter
Ø6mm;Ø
10mm;Ø11mm;Ø14mm
Recommended min.bend radius
4xCORE DIAMETER
Temperature range
-20¡éXC -120¡éXC
Length
30M/60M
Life expectancy
10years min.
Attenuation(dB loss)
<=2%/ft
Wave Length
380-780mm
Advised storage temperature
-15¡éXC-+50¡éXC
Optical Data
Refractive index of optical core
1.475
Refractive index of optical cladding
1.34
Numerical aperture
0.6
Acceptance angle
75

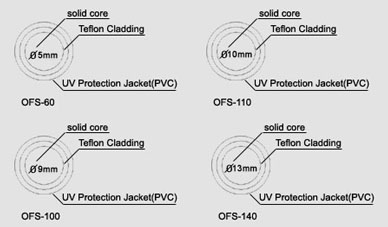

SPECIFICATION
ITEM NO.
FIBER DIA.(mm)
11.0OUT DIA.(mm)
LENGTH(M)
SHELDING COLOR
OFS-140
14.0
17.3
30/60
CLEAR
OFS-110
11.0
14.0
30/60
CLEAR
OFS-100
10.0
13.0
30/60
CLEAR
OFS-60
6.0
8.8
30/60
CLEAR

Advantages
  • Maximum visible light transmission and minimum light loss.
  • Exclusion of UV with removal of infrared by special filtering techniques.
  • Minimum attenuation values, to reduce light intensity losses at visibe wave lengths.
  • High Numerical Aperture, to maximize the acceptance angle for light entering or exiting the fiber.
  • To be flexible,completely safe and non-deteriorating.
  • To be used in ares that must be protected from shock, fire or electrical interference, creating the possibility for outdoor and under water light.
SPECIFICATION
ITEM NO.
FIBER DIA.(mm)
OUT DIA.(mm)
LENGTH(M)
SHEILDING COLOR
OFE-140
14.0
17.3

30/60

BLACK
OFE-110
11.0
14.0
30/60
BLACK
OFE-100
10.0
13.0
30/60
BLACK
OFE-60
6.0
8.8
30/60
BLACK
OFE-30
3.0
5.0
150
BLACK
OFE-25
2.5
4.5
250
BLACK
OFE-20
2.0
4.0
250
BLACK
OFE-15
1.5
3.5
700
BLACK
OFE-10
1.0
2.5
1500
BLACK
